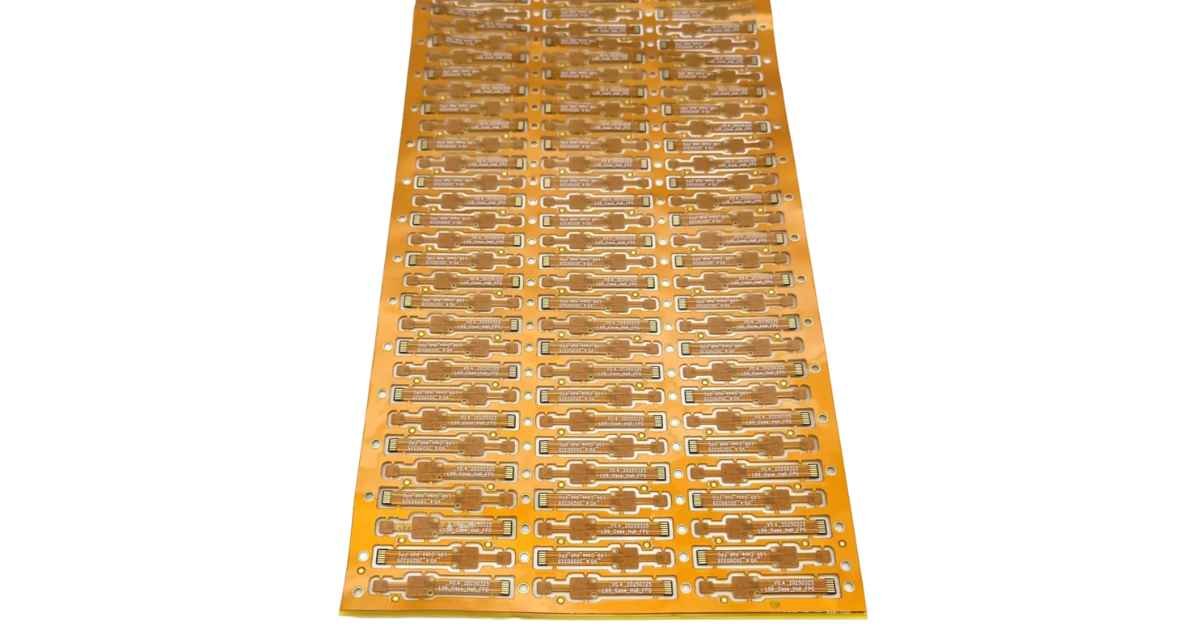

In the rapidly evolving landscape of modern electronics, where devices are becoming increasingly smaller, lighter, and more sophisticated, the flexible pcb manufacture industry has emerged as the engineering backbone that enables the remarkable advancements in wearable technology, medical devices, aerospace systems, and consumer electronics. Flexible printed circuit boards, commonly known as flex PCBs, represent a revolutionary departure from traditional rigid boards, designed to bend, twist, and fold into configurations that rigid boards simply cannot achieve. The flexible pcb manufacture process transforms thin, flexible polyimide or polyester films into intricate circuit patterns that can conform to the contours of compact devices, enabling the miniaturization and ergonomic design that consumers have come to expect. The industry that designs and manufactures these remarkable substrates has evolved dramatically, with manufacturers developing increasingly sophisticated processes that combine advanced materials, precision imaging, and rigorous quality control to produce circuits that can withstand millions of bending cycles while maintaining exceptional electrical performance. The global demand for flexible PCBs continues its robust growth, driven by the proliferation of wearable electronics, the increasing complexity of medical implants, and the relentless push toward lighter, more compact aerospace and defense systems. Understanding the manufacturing processes, material considerations, and design principles of flexible PCBs is essential for electronics engineers, product designers, and procurement professionals who recognize that flexible circuitry is fundamental to the next generation of electronic innovation.
The Fundamental Materials and Their Properties
The flexible pcb manufacture process begins with the careful selection of materials that provide the unique combination of flexibility, thermal stability, and electrical performance required for modern electronic applications. The base substrate, typically polyimide, is chosen for its exceptional thermal stability and mechanical resilience, enabling the circuit to withstand the rigors of dynamic bending while maintaining its structural integrity. Polyimide films offer the flexibility required for dynamic applications while providing the thermal resistance needed for lead-free soldering processes, and these films are available in various thicknesses to accommodate different bending requirements. The conductive layer is almost exclusively copper, which is bonded to the polyimide substrate through an adhesive or adhesiveless process, with rolled annealed copper being preferred for dynamic applications because of its superior flexibility and resistance to work hardening. The adhesive materials used to bond the layers together must provide reliable adhesion while maintaining flexibility, and many modern flexible pcb manufacture processes utilize adhesiveless constructions that offer superior thermal stability and thinner profiles. The protective coverlay, also typically made of polyimide, is applied over the circuit traces to protect them from environmental damage and mechanical stress, with openings precisely cut to expose pads for component attachment. The selection of these materials requires careful consideration of the application requirements, including the number of bending cycles, the operating temperature range, and the environmental conditions the circuit will encounter.
The Multi-Step Manufacturing Process
The flexible pcb manufacture process involves a carefully choreographed sequence of steps that transform raw materials into finished, functional circuits, with each step requiring precise control to achieve the necessary quality and reliability. The process typically begins with the preparation of the flexible copper-clad laminate, which is thoroughly cleaned to remove oxidation and contaminants that could affect subsequent processing. The circuit pattern is then transferred to the copper surface through a photolithography process, where a photosensitive dry film is laminated onto the cleaned copper, and precise circuit patterns are exposed using laser direct imaging technology. The unwanted copper is etched away, leaving only the designed circuit traces, and the remaining photoresist is stripped, revealing the completed circuit pattern. In multilayer designs, precise drilling is performed to create vias for interlayer connections, and these vias are plated with copper to establish electrical continuity between layers. The coverlay is then applied and laminated under heat and pressure, protecting the circuit traces from environmental damage, and a surface finish is applied to prepare the pads for soldering. The board outline is cut using laser or die cutting for precision, and each board undergoes electrical testing to ensure that all traces and vias are correctly placed. Throughout the flexible pcb manufacture process, quality control is paramount, with visual inspection, electrical testing, and mechanical testing verifying that each board meets the required specifications.
The Critical Design Considerations for Reliability
The design of flexible PCBs requires careful attention to mechanical and electrical principles that differ significantly from those of rigid boards, because the success of the flexible pcb manufacture depends on designs that respect the physics of bending and flexing. The minimum bend radius is the most critical design factor, because if the board is bent too tightly, the outer copper will stretch and crack, leading to circuit failure, and the safe minimum bend radius depends on the overall board thickness and the number of layers. For static applications where the board is flexed once during installation and then remains stationary, the minimum bend radius can be as low as six times the material thickness for single-sided boards, while dynamic applications with thousands or millions of bending cycles require significantly larger bend radii and the use of rolled annealed copper. The routing of traces through the bend zone is a determining factor in reliability, with traces ideally routed perpendicular to the bend line to minimize copper stretching, and sharp 90-degree corners are avoided because they focus stress. Plated through-holes should be avoided in the bend area because they create stress points that can lead to cracking, and in double-sided flex boards, the traces on opposite sides should be staggered so they are not directly on top of one another, which creates stiffness and stress concentration. The use of teardrops at pad-to-trace connections minimizes cracking at copper-to-via connections, and the copper thickness should be optimized for flexibility, with half-ounce to one-ounce copper being the sweet spot for most designs. These design considerations are essential to the success of flexible pcb manufacture, because no amount of fabrication quality can compensate for a design that does not respect the mechanical physics of bending.
The Future of Flexible Circuit Manufacturing
The flexible pcb manufacture industry is poised for significant evolution, driven by advances in materials science, manufacturing technology, and sustainability requirements that promise to enhance performance, reduce costs, and expand applications. The development of innovative manufacturing processes such as Dry Phase Patterning is eliminating the need for wet chemical etching, replacing chemistry-based processes with fully dry, mechanical roll-to-roll methods that dramatically reduce environmental impact and simplify production. These processes offer compelling advantages over conventional methods, including significantly higher electrical conductivity than printed electronics solutions, reduced dependence on volatile material supply chains, and elimination of hazardous chemicals that simplify regulatory compliance. The integration of laser-induced graphene technology is enabling additive manufacturing approaches that reduce waste, cut costs, and enable rapid prototyping, using a single-step laser process to convert carbon-rich materials into conductive structures. The increasing demand for extended-length flex circuits is pushing manufacturers to develop innovative splicing technologies that enable production of circuits exceeding significant lengths, opening new applications in aerospace, defense, and industrial systems. The future of flexible pcb manufacture is one of continuous innovation, driven by the needs of electronics manufacturers for circuits that are thinner, more flexible, more reliable, and more sustainable, and the companies that embrace these innovations will be well-positioned to lead the industry into the future.
Disclaimer: The information provided in this article is for general informational and educational purposes only. It does not constitute professional engineering, manufacturing, or procurement advice. Flexible PCB design and production involve complex technical considerations; always consult qualified specialists for specific projects. The author and publisher disclaim all liability for any design errors, manufacturing defects, or other consequences arising from reliance on this content. This article does not guarantee the performance or reliability of any particular flexible circuit. Mention of specific processes or technologies does not imply endorsement.
